RNA Needle Roller Bearings

RNA Needle Roller Bearings

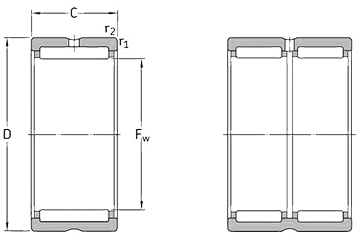

Drawing

Datasheet

Bearing No.	Dimensions			Mass	Bearing No.	Dimensions			Mass
Bearing No.	Fw	D	C		Bearing No.	Fw	D	C
–	mm	mm	mm	kg	–	mm	mm	mm	kg
RNA 4900	14	22	13	0.016	RNA 6906	35	47	30	0.13
RNA 4901	16	24	13	0.018	RNA 69/32	40	52	36	0.16
RNA 4902	20	28	13	0.022	RNA 6907	42	55	36	0.19
RNA 4903	22	30	13	0.023	RNA 6908	48	62	40	0.26
RNA 4904	25	37	17	0.056	RNA 6909	52	68	40	0.34
RNA 49/22	28	39	17	0.05	RNA 6910	58	72	40	0.31
RNA 4905	30	42	17	0.06	RNA 6911	63	80	45	0.47
RNA 49/28	32	45	17	0.073	RNA 6912	68	85	45	0.49
RNA 4906	35	47	17	0.069	RNA 6913	72	90	45	0.58
RNA 49/32	40	52	20	0.089	RNA 6914	80	100	54	0.86
RNA 4907	42	55	20	0.11	RNA 6915	85	105	54	0.94
RNA 4908	48	62	22	0.14	RNA 6916	90	110	54	0.99
RNA 4909	52	68	22	0.16	RNA 6917	100	120	63	1.2
RNA 4910	58	72	22	0.16	RNA 6918	105	125	63	1.35
RNA 4911	63	80	25	0.26	RNA 6919	110	130	63	1.45
RNA 4912	68	85	25	0.28	RNA 4822	120	140	30	0.66
RNA 4913	72	90	25	0.31	RNA 4824	130	150	30	0.73
RNA 4914	80	100	30	0.46	RNA 4826	145	165	35	0.99
RNA 4915	85	105	30	0.49	RNA 4828	155	175	35	0.97
RNA 4916	90	110	30	0.52	RNA 4830	165	190	40	1.6
RNA 4917	100	120	35	0.66	RNA 4832	175	200	40	1.7
RNA 4918	105	125	35	0.75	RNA 4834	185	215	45	2.55
RNA 4919	110	130	35	0.72	RNA 4836	195	225	45	2.7
RNA 4920	115	140	40	1.15	RNA 4838	210	240	50	3.2
RNA 4922	125	150	40	1.25	RNA 4840	220	250	50	3.35
RNA 4924	135	165	45	1.85	RNA 4844	240	270	50	3.6
RNA 4926	150	180	50	2.2	RNA 4848	265	300	60	5.4
RNA 4928	160	190	50	2.35	RNA 4852	285	320	60	5.8
RNA 6901	16	24	22	0.031	RNA 4856	305	350	69	9.3
RNA 6902	20	28	23	0.04	RNA 4860	330	380	80	12.5
RNA 6903	22	30	23	0.042	RNA 4864	350	400	80	13.5
RNA 6904	25	37	30	0.1	RNA 4868	370	420	80	14
RNA 69/22	28	39	30	0.098	RNA 4872	390	440	80	15
RNA 6905	30	42	30	0.11	RNA 4876	415	480	100	26
RNA 69/28	32	45	30	0.14
